Custom air knife systems are available on request

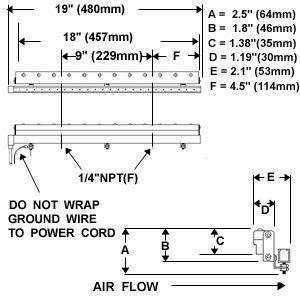

Ionizing Curtain Transvector (457 mm)

Technical data

Model 981-18
Type Ionizing Curtain Transvector
Category Ionizing Curtain Transvector
Material of Construction Aluminium
Length (mm) 457
Ionizing Yes
Number of Air Inlets 2

Curtain Transvectors Performance

Pressure barAir consumption (l/min)Velocity at distance from outlet (m/s)Thrust* per cm. (g)
(Transvector length)
7.6 cm15 cm31 cm46 cm61 cm5 cm15 cm31 cm
2.1130258514772102864261914
2.8163326652978130473362319
3.51973947881182157682432925
4.12274559101366182086503431
4.826052110421562208390543938
5.529458911781766235494624344
6.232364612901936258199674749
6.9360720144021602880103725155

* At 30 cm from Curtain Transvector outlet.
